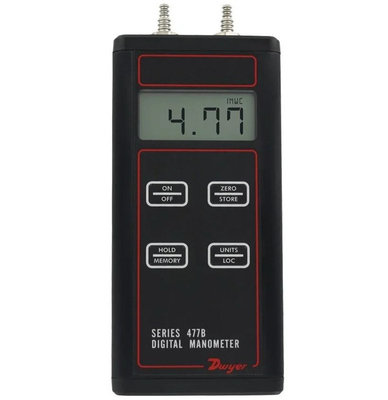

Dwyer 477B Digital Manometer for Air Pressure Measurement

Model : 477B-1

Brand Name : Dwyer

Model Number : 477B-1/2/3

MOQ : 1PCS

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Temperature Resistance : -17.8 ~ 60 ℃

Medium : Air And Compatible Gases

Type : Digital Pressure Gauge

Certification : CE

Range : 0-20.00" W.c.

Contact Now

Dwyer 477B Digital Manometer for Air Pressure Measurement
Product Specifications
Attribute Value
Brand Name Dwyer
Model 477B-1
Medium Air And Compatible Gases
Range 0-20.00" W.c.
Type Digital Pressure Gauge
Temperature Resistance -17.8 ~ 60 ℃
Product Overview

The Dwyer 477B Series Handheld Digital Manometer is a high-precision instrument for air pressure measurement, suitable for applications such as laboratory calibration and air-flow measurement in commercial buildings.

Dwyer 477B Digital Manometer for Air Pressure Measurement Dwyer 477B Digital Manometer for Air Pressure Measurement Dwyer 477B Digital Manometer for Air Pressure Measurement Dwyer 477B Digital Manometer for Air Pressure Measurement
Key Features
  • High-precision Measurement: Measures positive pressure, negative pressure or differential pressure with full-scale accuracy of ±0.10% (15.6 to 25.6°C), four times more accurate than standard manometers.
  • Multiple Pressure Units: Supports seven common English and metric pressure units with easy selection.
  • Data Storage: Stores up to 40 readings for convenient data recall and recording.
  • Backlight & Hold Function: Backlit display for low-light conditions and hold function to freeze current readings.
  • Over-pressure Alarm: Visual and audible alarms when pressure exceeds set range for safety.
Technical Specifications
Brand name Dwyer
Model 477B Series
Range 0-20.00" w.c.
Service Air and compatible gases
Wetted Parts Consult factory
Accuracy ±0.10% of full scale (15.6 to 25.6°C); ±1% of full scale (0 to 15.6 and 25.6 to 40°C)
Pressure Hysteresis ±0.1% of full scale
Temperature Limits 0 to 140°F (-17.8 to 60°C)
Display 4-digit LCD (.425" H x .234" W digits)
Weight 10.2 oz. (289 g)
Agency Approvals CE
