5V High Accuracy Water Level Ultrasonic Transducer Sensor RS485 6m

Brand Name : Kacise

Model Number : KUS series

Certification : ce,ISO9001

Place of Origin : China (Mainland)

MOQ : 1pcs

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000 Pieces per Week

Delivery Time : 5work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Product : Ultrasonic Distance Sensor

Detection Range : 300mm~5000mm

Transducer frequency : approx. 220kHz

Output : RS485 + 4-20mA/0-10V

Input power : 3.3V~24V

IP grade : IP68

Material : PVDF

Type : Waterproof

Theory : Ultrasonic Sensor

Warranty : 12 Months

Product name : PVDF 5m Ultrasonic water level meter

Contact Now

KUS600 3.3V-24V input power RS485 output low consumption for measure water level

5V High Accuracy Water Level Ultrasonic Transducer Sensor RS485 6m

1. Parameter

Model: KUS600
Measuring range

600... 5000 mm.

The measure distance can reach 6 meters if the power supply is 24V.
Blind spot 600 mm
Supply voltage 3.3 ... 24 VDC,ripple 10 %SS
No-load supply current I0 ≤ 20 mA active period and ≤0.3mA during sleep time

Output signal

 0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog output.
Measurement accuracy ≤1 %F.S.
Temperature compensation Yes
Ranging resolution 0.1mm；

Working conditions

Working temperature -40…85℃(233...358K)
Storage temperature -40…85℃(233...358K)

Other instructions

Electrical connection 5-core cable (analog output), 6-core cable (switch output)；
Protection class IP67
shell material PVC /PVDF/PTFE/ABS

2. Electronic interface and signals definition

Electrical connections and signal definitions

Line order Colour Definition
1 Red Power is positive
2 Black power return ground
3 Yellow Analog output, voltage output, current output switch output
4 Blue RS485 A+ or uart TXD
5 Green RS485 B- or uart RXD

3. Dimensions

Unit in the diagram is mm

5V High Accuracy Water Level Ultrasonic Transducer Sensor RS485 6m


4. Installation conditions
If the sensor is installed at the environment temperature fall below 0℃,It should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.

5. Ordering information

KUS model output range describe
630 Product series model
Custom made
0-10V Analog 0-10V output
0-5V Analog 0-5V output
0-3V Analog 0-3V output
4-20mA Analog 4-20mA output
SW Switch output
Uart Uart serial output MODBUS RTU protocol
RS485 RS485 output MODBUS RTU protocol
XX m

XX m means the maximum measurement distance

(default 10m)
KUS 550 RS485 2m

5V High Accuracy Water Level Ultrasonic Transducer Sensor RS485 6m

6. Packing and shipping



Product Tags:

RS485 Ultrasonic Water Tank Level Meter



5V Ultrasonic Water Sensor



PVDF Water Level Meter

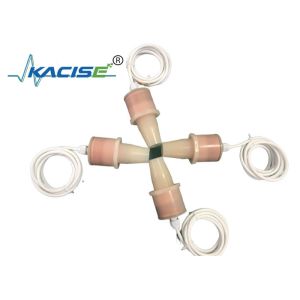

Buy cheap 5V High Accuracy Water Level Ultrasonic Transducer Sensor RS485 6m product
